What is a High Mast Light Tower?
A high mast light tower is a tall, engineered pole structure, typically ranging from 12 to 40 metres in height. It is designed to mount a cluster of high-powered luminaires to provide broad, uniform illumination over a large area from a single point. This approach is fundamentally different from conventional lighting, which uses numerous shorter poles.
A Single Solution for Large-Area Illumination
The core principle of a high mast light tower is efficiency and coverage. By elevating the light source, the beam spread becomes significantly wider, allowing one high mast pole to effectively replace multiple standard lighting columns. This consolidation is critical for minimising physical obstructions and visual clutter in open urban spaces, while ensuring consistent light levels that improve safety and visibility.
Key Benefits of High Mast Lighting
Opting for a high mast lighting system offers distinct advantages over traditional lighting solutions, particularly in large-scale urban and infrastructure projects. The benefits extend beyond simple illumination to include safety, aesthetics, and long-term operational efficiency.
Improved Safety and Security
Uniform, widespread illumination from a high mast tower minimises dark spots and deep shadows where potential hazards or threats could be concealed. This creates a safer environment for pedestrians and drivers and significantly improves the effectiveness of CCTV surveillance systems by providing clear, consistent imaging.
Improved Uniformity and Glare Control
High mast poles deliver superior lighting uniformity (the ratio of minimum to average illuminance) across a target area. When designed correctly with precision optics, they direct light downwards, reducing the harsh glare often associated with lower-mounted, high-intensity lights. This improves visual comfort for users and drivers in adjacent areas.
Reduced Visual Clutter
By replacing a multitude of shorter poles with a single, strategically placed tower, high mast lighting declutters the visual landscape. This is especially important in architecturally sensitive urban plazas, parks, and streetscapes, resulting in a cleaner and more aesthetically pleasing environment.
Simplified and Safer Maintenance
Servicing a single high mast pole, especially one equipped with a lowering mechanism, is far more efficient and safer than maintaining numerous individual poles. Ground-level maintenance eliminates the need for boom lifts or climbing, reducing costs, minimising traffic disruption, and improving workplace health and safety outcomes.
Lower Lifetime Cost of Ownership
While the initial investment in a high mast tower may be significant, the total cost of ownership is often lower. Savings are realised through a reduction in the number of poles, foundations, trenching, and cabling required. Combined with lower long-term maintenance costs and the energy efficiency of modern LED luminaires, high mast systems present a financially sound investment for large-area lighting.
Core Applications in Urban and Community Spaces
High mast light towers are versatile solutions engineered to meet the demands of various large-scale environments. Their primary value is in providing safe, effective, and compliant lighting for key urban and community areas.
Public Plazas and Pedestrian Malls
In city centres, high mast lighting creates inviting and secure spaces for community events, nightlife, and daily activities. It provides broad, even light that improves architectural features while ensuring pedestrians feel safe.
Large Car Parks and Transport Interchanges
For expansive car parks at shopping centres, airports, and public transport hubs, high mast towers ensure users can steer and locate their vehicles safely. The uniform coverage eliminates dark corners, deterring theft and vandalism.

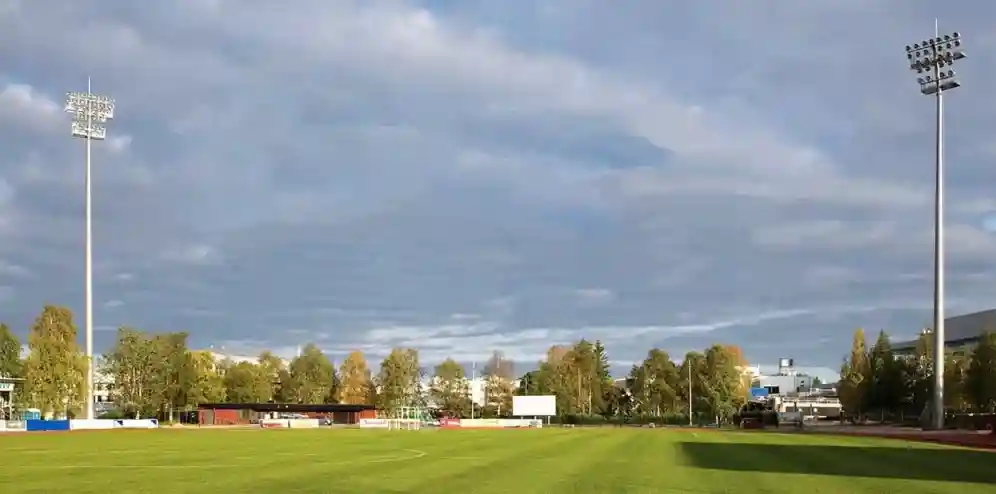

Community Sports and Recreation Precincts
High mast poles are essential for illuminating sports fields for evening training and competition. When equipped with specialised sports luminaires, they can meet the strict uniformity and glare requirements of standards like AS 2560 for various sporting codes.
Urban Infrastructure Hubs
Critical infrastructure such as airport landside areas (including aprons and access roads), rail yards, and intermodal freight terminals require reliable, high-quality illumination for 24/7 operation. High mast lighting ensures operational safety and security in these complex environments.
Commercial and Industrial Estates
For logistics hubs, storage yards, and large commercial precincts, high mast lighting provides the visibility needed for safe and efficient movement of vehicles and personnel, securing assets and maintaining productivity during night-time hours.
Structural Design and Material Specifications
The durability and safety of a high mast light tower depend entirely on its structural engineering and the quality of its materials. Each component is designed to withstand environmental loads and provide a long service life.
Tapered Steel Shafts
The pole shaft is typically constructed from high-strength steel and features a continuous taper from the base to the top. This tapered design is an efficient use of material, optimising the strength-to-weight ratio while minimising wind resistance.
Multi-Section Construction
For ease of transportation and on-site handling, taller masts are fabricated in multiple sections that are slip-jointed or flanged together during installation. This modular approach allows for precise assembly and ensures structural integrity.
Heavy-Duty Base Plates
A thick steel base plate is welded to the bottom of the pole. This plate is pre-drilled to match a cast-in footing cage, creating a robust, stable connection to the concrete foundation. The base plate is engineered to transfer all loads—including wind, weight, and vibration—safely into the ground.
Corrosion Protection and Finishing Options
To ensure a design life of 30 years or more, high mast poles require robust protection against environmental corrosion, particularly from moisture, salt, and industrial pollutants.
Hot-Dip Galvanising (to AS/NZS 4680)
The primary and most effective form of corrosion protection is hot-dip galvanising. After fabrication, the entire pole structure is immersed in a bath of molten zinc, creating a metallurgically bonded coating that protects the steel inside and out. This process conforms to Australian Standard AS/NZS 4680, ensuring long-lasting durability.
Duplex Coatings for Improved Protection and Aesthetics
For coastal, marine, or highly corrosive environments, a duplex coating system is recommended. This involves applying a layer of paint or powder coating over the galvanised steel. This two-layer approach not only provides superior corrosion resistance but also allows the pole to be finished in a specific colour to meet architectural or urban design requirements.
Sustainable and Recyclable Materials
Steel is a highly sustainable construction material as it is 100% recyclable at the end of its service life. This contributes to a circular economy and reduces the environmental impact of infrastructure projects.
Headframe and Luminaire Configurations
The headframe is the critical assembly at the top of the mast that supports the luminaires and other equipment. Its design is customised for each project to ensure structural stability and optimal lighting performance.
The Role of the Headframe
A headframe, which can be a ring, a T-bar, or a custom-shaped platform, provides a secure mounting point for luminaires. It is engineered to hold equipment stable against high winds and vibration, ensuring that the lighting aim remains precise over time.
Fixed vs. Lowering Headframes
- Fixed Headframes: These are static platforms that require a boom lift or liftd work platform for luminaire maintenance. They are a simple, robust solution suitable for sites with easy access.
- Lowering Headframes: These systems feature a winch and cable mechanism that allows the entire headframe assembly to be lowered to the ground for servicing. This dramatically improves safety, reduces maintenance costs, and is ideal for locations where access for heavy machinery is difficult or disruptive.
Customised for Project Loads
Headframes are never a one-size-fits-all component. They are custom engineered based on the total weight and Effective Projected Area (EPA) of all attachments, including luminaires, brackets, CCTV cameras, and sensors. This ensures the load is balanced and the pole's structural capacity is not exceeded.
Advanced LED Luminaire Technology
The performance of a high mast light tower is defined by the luminaires it supports. Modern LED technology offers unprecedented efficiency, control, and quality of light compared to legacy sources like high-pressure sodium or metal halide.
High-Efficiency LED Luminaires
High-performance LED area or sports luminaires can reduce energy consumption by up to 75%. They also offer an exceptionally long operational life (often exceeding 100,000 hours), instant start-up, and excellent colour rendering (CRI), which makes colours appear more natural and improves visual acuity.
Precision Optics for Glare and Spill Light Control
Modern luminaires feature advanced optical systems (lenses and reflectors) that precisely shape and direct light onto the target area. This maximises useful light while controlling unwanted spill light (light trespass) and disabling glare, ensuring compliance with standards like AS/NZS 4282.
Smart Lighting Controls
High mast systems can be integrated with smart controls for further optimisation. This can include:
- Scheduled Dimming: Automatically reducing light levels during off-peak hours.
- Remote Monitoring: Reporting on energy usage and operational status.
- Adaptive Control: Using sensors to adjust lighting based on occupancy or ambient light levels.
Maintenance Access and Electrical Integration
Safe and straightforward access to internal components is a critical design consideration for high mast poles, ensuring that inspection, maintenance, and repairs can be carried out efficiently throughout the pole's lifespan.
Lockable Access Doors
Every high mast pole includes a secure, lockable access door near the base. This door is sized to allow technicians easy access to the internal wiring, control gear, and winch mechanisms while preventing unauthorised entry.
Internal Cable and Gear Trays
Inside the pole, dedicated trays and brackets are used to mount and organise control gear, power supplies, and smart lighting nodes. This ensures all components are securely housed and that electrical cables are managed neatly, protecting them from abrasion, moisture, and vibration-induced damage.
Electrical Safety and Compliance
All electrical systems and components are designed to comply with Australian electrical standards. This includes proper earthing of the structure, clear labelling of circuits, and providing safe isolation points to ensure the safety of maintenance personnel during commissioning and servicing.
Standard and Custom Pole Heights
Selecting the correct pole height is a balance between achieving the desired light coverage, minimising the number of poles, and integrating with the surrounding environment. Vizona offers both standard and fully customisable height options.
Standard Height Range (12m to 40m)
Our standard range of high mast poles covers heights from 12.0 metres to 40.0 metres. This selection is suitable for the vast majority of applications, including large car parks, sports fields, transport interchanges, and industrial facilities.
Custom-Engineered Heights
For projects with unique requirements, we can engineer custom poles that go beyond standard heights or are designed to handle exceptionally large head loads. This is often necessary for sites with complex topography, specialised attachments, or location in high wind regions.
The Importance of Site-Specific Engineering
A generic, off-the-shelf approach is unsafe and non-compliant for high mast lighting. Each tower must be specifically engineered for its intended location and application to guarantee structural adequacy and long-term performance.
Wind Load Analysis (AS/NZS 1170.2)
The most significant force acting on a high mast pole is wind. A structural engineer must perform a wind load analysis according to AS/NZS 1170.2, considering the site's specific wind region, terrain category, shielding factors, and topography.
Head Load Calculation (Weight and EPA)
The total load at the top of the pole must be accurately calculated. This includes the combined weight of all luminaires, brackets, and attachments, as well as their Effective Projected Area (EPA), which determines the wind force they will catch.
Geotechnical and Footing Design
The pole is only as stable as its foundation. A geotechnical assessment of the site's soil conditions is required to design a concrete footing that can safely support the pole and resist all applied loads without movement or fatigue over time.
A Guide to Selecting the Right High Mast Pole
Use this framework to streamline your selection process and ensure all critical factors are considered, avoiding costly errors and ensuring a compliant outcome.
- Define the Application: Is it an urban plaza, sports field, car park, or industrial zone? Clarify the primary performance goals (e.g., public safety, sports compliance, security).
- Determine Optimal Height: Use lighting design software to model light spread and uniformity. Balance the use of fewer tall poles against more shorter poles to control glare and visual clutter.
- Calculate Total Head Load: Sum the total weight and EPA for all luminaires, brackets, CCTV, sensors, and any other attachments.
- Select Appropriate Materials and Finish: Steel is standard for its strength. Specify a hot-dip galvanised finish for standard environments or a duplex coating for coastal or architecturally sensitive sites.
- Assess the Wind Load: Ensure the design is certified to AS/NZS 1170.2 using site-specific data for wind region, terrain, and topography.
- Consider the Environment: Account for factors like coastal salt spray, industrial pollutants, extreme heat, or dust that may require improved material specifications.
- Ensure Full Compliance: Verify that the lighting design meets relevant standards (e.g., AS/NZS 1158 for public spaces, AS 2560 for sports) and that the structure is certified by a qualified engineer.
- Choose the Mounting Method: A flange base with a cast-in footing cage is the most common and reliable method.
- Integrate Modern Lighting Technology: Specify high-efficiency LED luminaires and consider smart controls to maximise energy and maintenance savings.
- Plan for Aesthetics: Consider the pole's shape, finish colour, and luminaire style to ensure the installation complements the urban design.
Common Pitfalls in High Mast Lighting Projects
Avoiding common mistakes during the specification and design phase is crucial for the success and longevity of a high mast lighting installation. Be aware of these potential pitfalls:
- Using a Generic Height: Selecting a pole height without a proper lighting simulation often leads to poor uniformity, dark spots, and excessive glare.
- Ignoring Wind and Head Loads: Underestimating the site's wind region or the total EPA of attachments can lead to structural failure.
- Over-Lighting the Site: Exceeding the required light levels wastes energy and increases spill light, negatively impacting adjacent properties and the night sky.
- Neglecting Luminaire Aiming: Failing to produce a detailed aiming diagram during the design phase results in a poorly performing system.
- Overlooking Maintenance Access: Not specifying a lowering system where access is difficult leads to high long-term maintenance costs and safety risks.
- Forgetting Future-Proofing: Not accounting for potential future attachments (like cameras or sensors) may require a costly pole replacement later.
- Skipping Compliance Checks: Failure to adhere to all relevant Australian Standards (e.g., AS/NZS 1170.2, AS/NZS 1158, AS 2560) can result in an unsafe and non-compliant installation.
- Disregarding Urban Aesthetics: Ignoring the visual impact of the pole and its finish can detract from the quality of a public space.
AS/NZS Compliant Lighting Design Services
A successful high mast lighting project begins with a professional, compliant lighting design. This process translates project requirements into a buildable plan that guarantees performance, safety, and efficiency.
The Lighting Design Process
Vizona's expert lighting design service follows a structured methodology:
- Project Brief Development: We work with you to understand the site, application, and key objectives for safety, visibility, and energy use.
- Computer Simulation: Using advanced software, we create a 3D model of the site to determine the optimal pole height, location, and luminaire configuration.
- Compliance Verification: The design is checked against all relevant Australian Standards, including AS/NZS 1158 for public lighting, AS 2560 for sports applications, and AS/NZS 4282 for spill light control.
- Final Documentation: We provide a comprehensive report including simulations, luminaire schedules, aiming diagrams, and compliance statements.
Delivering Optimal Outcomes
Our goal is to deliver a clear, actionable plan that ensures confident visibility, meets all regulatory requirements, and maximises operational savings for the asset owner.
Why Partner with Vizona for High Mast Lighting?
Choosing the right supplier is as important as choosing the right product. Vizona offers an integrated solution that combines expert engineering, compliant design, and high-quality manufacturing.
- Australian Owned and Operated: We provide nationwide supply with dedicated teams based in Western Australia, Parramatta, and Wagga Wagga.
- Built to Australian Standards: Our poles are manufactured to stringent quality assurance protocols, with galvanising certified to AS/NZS 4680.
- Integrated Expertise: We are experts in both poles and lighting, providing a seamless solution from concept to delivery.
- AS-Compliant Design: We offer in-house, standards-compliant lighting design to ensure your project performs as intended.
- Proven Project Experience: We have a track record of success on major infrastructure programs and community projects across Australia.
- Responsive and Transparent: We provide clear, responsive quoting and collaborate with you to meet site-specific needs.
- Focus on Sustainability: We prioritise energy-efficient LED technology and recyclable materials to deliver long-term value and environmental benefits.
- Custom Engineering Capability: Our team can engineer solutions for the most complex sites, including those with high wind loads or unique attachment requirements.
Explore Our High Mast Pole Systems
High mast poles deliver reliable, uniform illumination that improves safety, usability, and long-term efficiency for large urban and industrial areas. With Vizona, you get a partner who blends structural know-how with AS-compliant lighting design, ensuring the right height, the right luminaires, and the right controls for your project.
Ready to design with confidence? Contact our team to discuss your project requirements or request a custom design today.
